This study, conducted by Wuhan University's GNSS Research Center and published in Satellite Navigation in May 2024, investigated the impact of inter-satellite link (ISL) observations on precise orbit determination for BeiDou-3 Navigation Satellite System (BDS-3) Medium Earth Orbit (MEO) satellites based on different Extended CODE Orbit Models (ECOM).

The key findings are:

1. ISL significantly enhances the reliability of the orbit of MEO satellites manufactured by the China Academy of Space Technology (CAST). The standard deviation of the satellite laser ranging (SLR) residuals is reduced to around 2.5 cm.
2. For CAST satellites, the sun-elongation angle dependent systematic error in SLR residuals nearly vanishes when using ISL data with the reduced 5-parameter ECOM (ECOM1) or extended 7-parameter ECOM (ECOM2) models. This is because ISL reduces correlations between state and solar radiation pressure (SRP) parameters, enabling more accurate orbit and SRP perturbation estimates, especially in the B direction.
3. For satellites made by Shanghai Engineering Center for Microsatellites (SECM), ISL data allows more accurate estimation of the Bc1 parameter in ECOM1, reducing linear systematic error. However, the impact from the satellite bus is not fully absorbed by B-direction parameters.
4. The deficiency of SRP models for BDS-3 CAST satellites can be compensated by using the improved observation geometry provided by ISL data.
5. Future GNSS constellations with LEO satellites and optical ISLs are expected to enable more accurate dynamic models and benefits from enhanced geometry.

In summary, the study demonstrates ISL observations can significantly improve BDS-3 MEO precise orbit determination by enabling more accurate SRP modeling, especially for satellites from certain manufacturers. It provides a new perspective on leveraging ISL to mitigate SRP perturbation effects.

How InterSatellite Link improves Accuracy

According to the study, inter-satellite link (ISL) data significantly enhances the reliability of the orbit of MEO satellites manufactured by the China Academy of Space Technology (CAST) in the following ways:

1. Reduced SLR residuals: With the inclusion of ISL data, the standard deviation of the satellite laser ranging (SLR) residuals for CAST satellites is reduced to approximately 2.5 cm. The root mean square (RMS) of the SLR residuals is reduced by 10–23% compared to solutions using only L-band data.
2. Mitigation of systematic errors: The sun-elongation angle dependent systematic error in SLR residuals nearly vanishes for CAST satellites when using the reduced 5-parameter ECOM (ECOM1) or extended 7-parameter ECOM (ECOM2) models with ISL data.
3. Improved parameter estimation: ISL data reduces the correlation between state parameters and solar radiation pressure (SRP) parameters, as well as the correlations among SRP parameters. This leads to a more accurate estimation of both orbit and SRP perturbations, particularly in the B direction (perpendicular to both the satellite-Sun and satellite-Earth directions).
4. Compensation for SRP model deficiencies: The improved observation geometry provided by ISL data can compensate for deficiencies in the SRP models for BDS-3 CAST satellites.

In summary, the incorporation of ISL observations in the precise orbit determination process significantly improves the accuracy and reliability of the estimated orbits for BDS-3 MEO satellites manufactured by CAST. This enhancement is achieved through the reduction of SLR residuals, mitigation of systematic errors, improved parameter estimation, and compensation for SRP model deficiencies.

Authors

The authors of the paper are:

1. Chao Yang
2. Jing Guo (corresponding author)
3. Xiaolong Xu
4. Longyu Wang
5. Qile Zhao

All authors are affiliated with the GNSS Research Center, Wuhan University, located at No. 129 Luoyu Road, Wuhan, China.

As one of the Analysis Centers (AC) of the International GNSS Service (IGS), Wuhan University (WHU) has been contributing to the IGS by providing ultra-rapid as well as rapid orbit and clock solutions for the established GPS and GLONASS since 2012. In the same year, the IGS initiated the Multi-GNSS Experiment (MGEX) to support the analysis of the emerging GNSS systems and prepare the IGS for Multi-GNSS, which includes GPS, GLONASS, the European Galileo system, the Chinese Beidou Navigation Satellite System (BDS), the Japanese Quasi-Zenith Satellite System (QZSS) and the Indian Regional Navigation Satellite System (IRNSS/NaVIC). The major products, i.e., orbits, Earth Orientation Parameters (EOPs), satellite clock as well as attitude have also been provided by WHU since 2012. More recently, WHU has engaged the third reprocessing of IGS for generating the highly accurate station coordinates as inputs for establishment of the International Terrestrial Reference Frame (ITRF) 2020 during 2019—2020. The recent major advancements of the IGS AC at Wuhan University, include precise products, real-time products, bias products, antenna phase center calibration, and the non-linear motion modeling for GNSS Reference Stations.

Regarding their previous work:

Jing Guo has been involved in several studies related to precise orbit determination (POD) and GNSS. In 2023, Guo and colleagues published a paper titled "BDS-3 precise orbit and clock solution at Wuhan University: Status and improvement" in the Journal of Geodesy. In 2016, Guo and colleagues published a study titled "Precise orbit determination for quad-constellation satellites at Wuhan University: Strategy, result validation, and comparison" in the Journal of Geodesy.

Qile Zhao has also been involved in research related to precise orbit determination for BDS satellites. In 2022, Zhao and colleagues, including Jing Guo, published a paper titled "Precise orbit determination for BDS satellites" in Satellite Navigation.

The other authors, Chao Yang, Xiaolong Xu, and Longyu Wang, have contributed to this study, but no specific previous works were mentioned in the article or found in the provided context.

The GNSS Research Center at Wuhan University has been actively involved in research related to GNSS, precision orbit determination, and BDS satellite systems. The authors' previous works demonstrate their expertise and ongoing contributions to this field of study.

Artifacts

There are a few indications that some data might be available:

1. In the "Data availability" section, the authors state that "The estimated accelerations and orbits are available upon request." This suggests that the authors are willing to share the derived accelerations and orbits data with interested parties.
2. The authors also mention that "The ISL observation data are available from the corresponding author upon reasonable request and with the permission of the China Satellite Navigation Office (CSNO)." This indicates that the inter-satellite link (ISL) observation data used in the study may be obtained by contacting the corresponding author, Jing Guo, subject to permission from the CSNO.

---

SRP acceleration differences between the solution E1 and E1I for C20 in the along-track (a), cross-track (b), radial (c) and D (d), Y (e), B (f) direction. Credit: Satellite Navigation

Inter-satellite link (ISL) plays an essential role in current and future Global Navigation Satellite System (GNSS). A recent study, conducted by Wuhan University's GNSS Research Center and published in Satellite Navigation in May 2024, explored the significant effect of ISL data on the orbital characteristics of the BDS-3 MEO satellites.

From the external quality analysis, ISL significantly enhances the reliability of the orbit of MEO satellites manufactured by the China Academy of Space Technology (CAST).

Additionally, the sun-elongation angle dependent systematic error in SLR residuals nearly vanishes based on the reduced 5-parameter ECOM (ECOM1) or extended 7-parameter ECOM (ECOM2) with ISL data. This is because the ISL reduces the correlation between state parameters and solar radiation pressure (SRP) parameters as well as those among SRP parameters, leading to a more accurate estimation of both orbit and SRP perturbations, particularly those along B direction.

This confirms that the deficiency of the SRP models for BDS-3 CAST satellites can be compensated by using better observation geometry from ISL data. On the other hand, for the satellite manufactured by Shanghai Engineering Center for Microsatellites (SECM), the ISL allows for a more accurate estimation of the Bc1 parameter in the ECOM1 model. This only reduces linear systematic error, possibly because the impact generated by the satellite bus cannot be entirely absorbed by the B-direction parameters.

This study provides a new perspective to view the SRP perturbation. Considering that future GNSS constellations will consist of LEO satellites and optical ISLs will be used, more accurate dynamic models and contribution from better geometry can be expected.

More information: Chao Yang et al, Impacts of inter-satellite links on the ECOM model performance for BDS-3 MEO satellites, Satellite Navigation (2024). DOI: 10.1186/s43020-024-00131-y

Provided by Aerospace Information Research Institute, Chinese Academy of Sciences

Citation: The impact of inter-satellite links on the ECOM model performance for BDS‑3 MEO satellites (2024, May 16) retrieved 16 May 2024 from https://phys.org/news/2024-05-impact-inter-satellite-links-ecom.html

This document is subject to copyright. Apart from any fair dealing for the purpose of private study or research, no part may be reproduced without the written permission. The content is provided for information purposes only.

Impacts of inter-satellite links on the ECOM model performance for BDS-3 MEO satellites

Zhao, Qile

satellite-navigation.springeropen.com

---

• Original Article
• Open access
• Published: 13 May 2024

• Jing Guo  ORCID: orcid.org/0000-0003-4709-9733¹, Xiaolong Xu¹, Longyu Wang¹ & … Qile Zhao¹

Satellite Navigation volume 5, Article number: 14 (2024) Cite this article

Abstract

Inter-satellite link (ISL) plays an essential role in current and future Global Navigation Satellite System (GNSS). In this study, we investigate the impact of ISL observations on precise orbit determination for BeiDou-3 Navigation Satellite System (BDS-3) Medium Earth Orbit (MEO) satellites based on different Extended CODE Orbit Models (ECOM). Thanks to the better observation geometry of the Ka-band ISL data compared to the L-band data for BDS-3 MEO satellites, the ISL solution substantially reduces Orbit Boundary Discontinuity (OBD) errors, except for C30, which suffers from unstable Ka-band hardware delay. From the external quality analysis, ISL significantly enhances the reliability of the orbit of MEO satellites manufactured by the China Academy of Space Technology (CAST). The standard deviation (STD) of the satellite laser ranging (SLR) residuals is approximately 2.5 cm, and the root mean square (RMS) is reduced by 10–23% compared to L-band solutions. Besides, the Sun-elongation angle dependent systematic error in SLR residuals nearly vanishes based on the reduced 5-parameter ECOM (ECOM1) or extended 7-parameter ECOM (ECOM2) with ISL data. This is because the ISL reduces the correlation between state parameters and solar radiation pressure (SRP) parameters as well as those among SRP parameters, leading to a more accurate estimation of both orbit and SRP perturbations, particularly those along B direction. This confirms that the deficiency of the SRP models for BDS-3 CAST satellites can be compensated by using better observation geometry from ISL data. On the other hand, for the satellite manufactured by Shanghai Engineering Center for Microsatellites (SECM), the ISL allows for a more accurate estimation of the Bc₁ parameter in the ECOM1 model. This only reduces linear systematic error, possibly because the impact generated by the satellite bus cannot be entirely absorbed by the B-direction parameters.

Introduction

The BeiDou navigation satellite system (BDS) has been fully operational, with the global constellation (BDS-3) providing Positioning, Navigation, and Timing (PNT), short message, international search and rescue, as well as other services since July 31, 2020. Currently, the BDS-3 constellation consists of 30 satellites, i.e., 3 GEO satellites, 3 IGSO satellites, and 24 MEO satellites. Additionally, the BDS-3 satellites are equipped with Inter-satellite Link (ISL) devices for communication and ranging in Ka-band. ISL is an innovative key technology, which is playing a revolutionary role in current and future GNSS (Glaser et al., 2020). Many studies explored the contribution of ISL to orbital accuracy. With ISL observations of 8 satellites, the 3D overlapping orbit differences can be reduced from approximately 1.0 m to 0.5 m based on 10 regional stations (Yang et al., 2020). Xie et al. (2019) showed a 42% or 83% improvement in orbital accuracy was achieved by combining ISL observations with 16 global or 6 regional stations, respectively. Moreover, Michalak et al. (2021) performed the full-scale simulations for the future GNSS constellation “Kepler”, and the results showed that ISL can significantly improve the performance of the determined orbit, clock, and geodetic parameters.

On the other hand, precise modeling of the various perturbations acting on GNSS spacecrafts is essential, particularly the solar radiation pressure (SRP), as it is the most significant non-conservative force acting on GNSS satellites. For the SRP modeling of BDS satellites, extensive research has been conducted, with three primary approaches: empirical, analytical, and semi-analytical models. The Empirical CODE orbit model (ECOM), first introduced by Beutler et al. (1994), has been widely used for BDS satellites SRP modeling, with its simplified 5-parameter model (ECOM1). However, it has been observed that ECOM1 is not applicable for the satellites in orbit-normal (ON) attitude mode. Guo et al. (2013) identified the clear deficiencies of ECOM1 during ON mode for BDS-2 IGSO and MEO satellites. Moreover, for BDS GEO satellites, there is a strong correlation between the orbital and ECOM1 parameters due to the use of ON attitude mode and poor observation geometry. To overcome these shortcomings, Guo et al. (2016) added an empirical force parameter in the along-track direction. For BDS-3 MEO satellites, the Sun-elongation angle ($\text{ε}$-angle, the angle between the Earth and Sun direction as observed from the satellite) dependent linear error can be clearly identified within the orbits determined with ECOM1 model (Zhao et al., 2022). Yan et al. (2019) used the extended ECOM (ECOM2) model to reduce this error. Furthermore, Duan et al. (2022) divided the 18 BDS-3 MEO satellites into four groups and established a hybrid SRP model to reduce the systematic error.

The above-mentioned research for SRP models are based on L-band data. Orbit determination relies not only on dynamic models, but also on observation geometry. Compared with L-band data, ISL has a better observation geometry. Zhao et al. (2022) demonstrated that ISL measurements can effectively reduce Sun-elongation angle dependent systematic error in the BDS-3 MEO orbits determined with ECOM1 without a prior model. This discovery served as a motivation for an in-depth investigation of the impacts of ISL on BDS-3 MEO SRP models and the reasons. We begin with an introduction of ECOM series models and the general structure of the BDS-3 MEO satellites, followed by an analysis and discussion of the influence of ISL on the BDS-3 MEO orbit determined with ECOM1 and ECOM2. Finally, the conclusion is drawn.

Methodology

ECOM models

The ECOM model is widely employed in the GNSS community. To account for SRP perturbations, Beutler et al. (1994) and Springer et al. (1999) proposed a Sun-oriented reference frame, which comprises three unit vectors: ${\stackrel{\rightharpoonup }{e}}_D$, which points towards the Sun, ${\stackrel{\rightharpoonup }{e}}_Y$, which is aligned with the solar panels (SPs), and ${\stackrel{\rightharpoonup }{e}}_B$, which is perpendicular to both ${\stackrel{\rightharpoonup }{e}}_D$ and ${\stackrel{\rightharpoonup }{e}}_Y$ axes to form the right-hand reference system. To reduce the draconitic signals of the geodetic parameters derived from GNSS, Arnold et al. (2015) summarized and extended the ECOM model. In this model, the accelerations are expressed as:

$$\begin{array}{rl}{\stackrel{\rightharpoonup }{a}}_D& =D_0+\sum _{i=1}^{n_D}\left\{D_{2i,c}cos2i\mathrm{\Delta }u+D_{2i,s}sin2i\mathrm{\Delta }u\right\}\\ {\stackrel{\rightharpoonup }{a}}_Y& =Y_0\\ {\stackrel{\rightharpoonup }{a}}_B& =B_0+\sum _{i=1}^{n_B}\left\{B_{2i-1,c}\text{cos}\left(2i-1\right)\mathrm{\Delta }u+B_{2i-1,s}\text{sin}\left(2i-1\right)\mathrm{\Delta }u\right\}\end{array}$$

(1)

The ECOM1 model can be derived by taking $n_D$ = 0 and $n_B$ = 1. With $n_D$ = 1 and $n_B$ = 1, we get ECOM2 model. The constant perturbation along the ${\stackrel{\rightharpoonup }{e}}_D$ direction is represented by $D_0$, while $Y_0$ and $B_0$ denote the biases in the ${\stackrel{\rightharpoonup }{e}}_Y$ and ${\stackrel{\rightharpoonup }{e}}_B$ direction, respectively. $D_{2i,c}$ and $D_{2i,s}$ denote the even-order perturbations along the ${\stackrel{\rightharpoonup }{e}}_D$ direction. $B_{2i-1,c}$ and $B_{2i-1,s}$ represent the odd-order perturbations along the ${\stackrel{\rightharpoonup }{e}}_B$ direction. The angular parameter $\mathrm{\Delta }u\approx u-u_s$, where $u$ and $u_s$ are the latitude of satellite and Sun in the satellite’s orbital plane, respectively. The $\mathrm{\Delta }u$ can be replaced by the orbital angle $\mu$ (Arnold et al., 2015; Montenbruck et al., 2015), which is adopted in this study.

BDS-3 MEO satellites and ISL

The BDS-3 satellites, manufactured by China Academy of Space Technology (CAST) and Shanghai Engineering Center for Microsatellites (SECM), are distributed on three different orbital planes. Satellites C27–C30, C34, C35, C43 and C44 are in slot-A; satellites C19-C22, C32, C33, C41 and C42 are in slot-B; and satellites C23-C26, C36, C37, C45 and C46 are in slot-C. The metadata for the BDS-3 satellite was released by China Satellite Navigation Office (CSNO) at the end of 2019. Figure 1 depicts an artist’s impression of the BDS-3 MEO satellites from CSNO and SECM. From Fig. 1, we can observe that CAST MEO satellites are based on the dedicated T-shaped platform with a panel for providing search and rescue (SAR). SECM MEO satellites are manufactured based on the same bus (SECM-A) with the exception of C43 and C44 (SECM-B), which exhibit slightly different shapes. Moreover, we can see from Fig. 1 that the satellite bus is non-cubic for both CAST and SECM missions. These two types of satellites are stretched in different directions. And CAST MEO satellites with a mass of approximately 941–1061 kg are lighter than SECM MEO satellites with a mass of approximately 1010–1079 kg.

Fig. 1

Artist’s impression of the BDS-3 CAST (left) and SECM (right) MEO satellites. (Credit: Test and Assessment Research Center (TARC) of CSNO and SECM)

Full size image

Additionally, BDS-3 adopts the Concurrent Spatial Time Division (CSTD) scheme to achieve inter-satellite communication and ranging. Under this design, a dual one-way measurement is completed by a pair of satellites within 3 s based on predefined timeslot schedule. Due to the Earth obstruction and the maximum nadir angle limitation (60°), each satellite is unable to establish a connection with its adjacent satellite and the farthest satellite in the same orbital plane. Instead, it can form continuous links with the second and third nearest satellites within the same orbital plane, resulting in a total of four continuous links in each plane. In terms of out-of-plane links, there are twelve discontinuous links and four continuous links. Furthermore, each IGSO and GEO satellite has the capability to establish connections with the MEO satellites. And the IGSO satellites can establish connections with one another. Zhao et al. (2022) provide a detailed description of the connection scheme. Figure 2 shows the observation geometry on day of year (DOY) 336, 2020, taking C20 as example. It can be clearly observed that the observation geometry of ISL is significantly better than that of L-band, for which the range of the nadir angle is approximately 0°~14°. The nadir angle for in-plane links is approximately 23° and 45°, whereas the nadir angle of out-plane links varies from 16° to 60°.

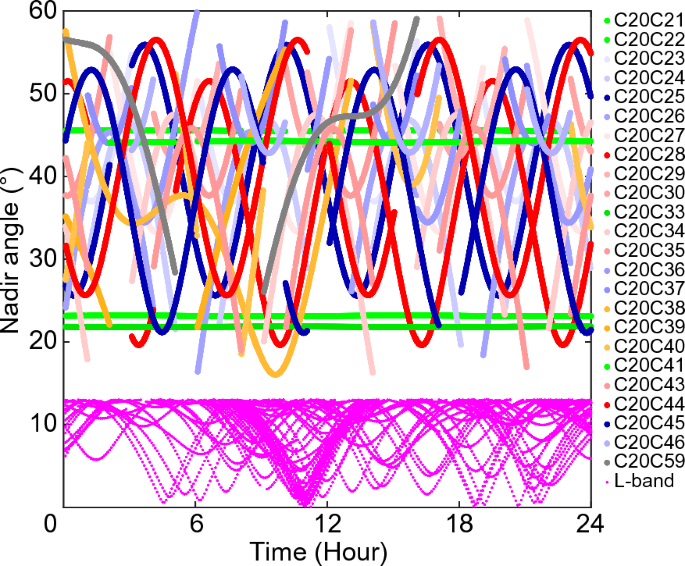

Fig. 2

The observation geometry of the BDS-3 ISL and L-band for C20 (MEO, Slot B-8) on DOY 336, 2020. C20 with C21, C22, C28, C25, C33, C41, C44, and C45 are continuously visible, whereas the rest are intermittently visible

Full size image

Strategy

Since 2020, there have been over 100 monitoring stations with BDS-3 MEO satellites tracking capability. In this study, the data of approximately 1 year (DOY 007, 2020 ~ DOY 337, 2020) are selected for processing. In our analysis, we select approximately 15 International GNSS Monitoring and Assessment System (iGMAS) stations and 100 IGS stations for precise orbit determination (POD) based on the Position and Navigation Data Analyst (PANDA) software (Liu & Ge, 2003). Figure 3 shows the distribution of these stations.

Fig. 3

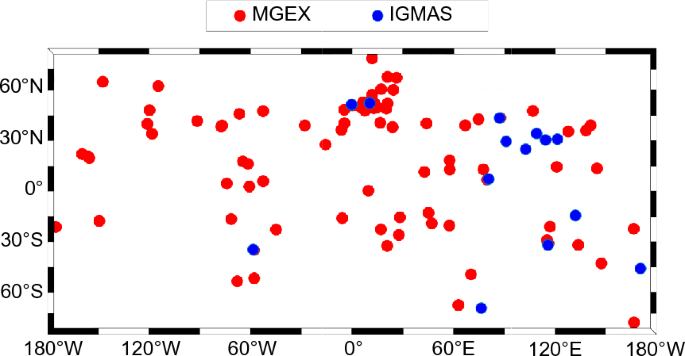

Distribution of IGS (red cycle) and iGMAS stations (blue cycle) for DOY 320, 2020

Full size image

A two-step approach is applied for POD. We first estimate station coordinates, receiver clock offsets, and tropospheric zenith delays by utilizing the Precision Point Positioning (PPP) method based on GPS L1 and L2 observations and IGS precise orbits as well as 30 s clocks. Then, these parameters are fixed, and BDS-3 B1I as well as B3I observations with a sampling rate of 300 s are used to estimate orbits, satellite clocks, SRP parameters, and ambiguity parameters in a 24-h batch mode. The POD strategy is nearly identical to the one used by Guo et al. (2023), with the exception of SRP models. In the ISL data processing, the original dual one-way observation is first transformed into a single observable for orbit determination. The transformation algorithm is presented by Tang et al. (2018). The reference time $t_0$ used for the reduction of dual one-way ISL data in this study is the middle epoch of receiving and sending epoch. The clock-free observable $P\left(t_0\right)$ is used for orbit determination as follows:

$$P\left(t_0\right)=\frac{P_{BA}\left(t_0\right)+P_{AB}\left(t_0\right)}{2}=\left|{\overrightarrow{R}}_A\left(t_0\right)-{\overrightarrow{R}}_B\left(t_0\right)\right|+c\cdot \left({\delta }_A+{\delta }_B\right)+\text{ε}$$

(2)

where $P_{BA}\left(t_0\right)$ and $P_{AB}\left(t_0\right)$ are the transformed forward and backward observations, respectively. ${\overrightarrow{R}}_A\left(t_0\right)$ and ${\overrightarrow{R}}_B\left(t_0\right)$ are the position vectors of satellites A and B at $t_0$, respectively. $c$ is the speed of light in vacuum. ${\delta }_A$ and ${\delta }_B$ are the hardware delays of satellites A and B, respectively. In our processing, the hardware delay is estimated as a constant parameter for each arc. $\text{ε}$ is the noise of the ISL measurement. The detailed strategy can be found in Table 1. Since all ISLs between satellites are used, there is no need to set a cutoff angle. Additionally, the troposphere delay is not considered, as the ISLs between satellites do not pass through the troposphere. In the GNSS community, it is widely acknowledged that the precisions of phase and code are in the millimeter level (about 3 mm) and decimeter level (about 30 cm for precise code). Considering the accuracy of the ISL is approximately 3 cm, the weight ratio was set as 10,000:100:1 for the phase, ISL, and code measurements in this study (Yang et al., 2020).

Table 1 Strategy for L-band and ISL data analysis as well as POD of BDS-3 MEO satellites

Full size table

To assess the impact of ISL on the orbital characteristics of BDS-3 MEOs, we conducted experiments that differ in terms of (1) the usage of data and (2) the SRP models (as outlined in Table 2). Three primary strategies were employed in this study. Strategy "E1" refers to the ECOM1 model. Strategy "E2" represents the ECOM2 model with 7 parameters. And strategy "EA" incorporates an additional along-track constant perturbation based on the ECOM1 model. Moreover, the last letter "I" in the solution denotes the integration of ISL data and L-band data for joint POD.

Table 2 Information on the solutions as well as the corresponding SRP and data used

Full size table

Results and analysis

This section analyzes the results of the BDS-3 POD based on L-band and ISL data. We evaluate the accuracy of the orbit solution and explore the impact of the introduction of ISL observations for POD.

Orbit boundary discontinuity (OBD)

The OBD describes the difference between the satellite orbits from two adjacent orbit arcs at the same daily boundary epoch, and it indicates the internal quality of orbit solutions. Figure 4 illustrates the OBD of BDS-3 MEO satellites for the six solutions. Here, we selected C42, C44, and C46 to represent the orbit performance for the satellites with PRN beyond 40. Significantly different performances can be seen among the different satellites. For those solutions with L-band data only (E1, E2 and EA solutions), the same phenomenon can be observed. Specifically, satellites C19–C25 and C32–C37 demonstrate the highest level of consistency, followed by C26–C30. However, orbits of C42–C46 show the worst performance, primarily due to the limited tracking data available in the selected study period. Once the ISL observations are used, the median decreases by approximately 5–30 cm. Among the solutions, E2I shows the best performance, and the median of the OBD is 6.6 cm with the inter-quartile range (IQR) at the level of 4.7 cm. Meanwhile, the Q3 + 1.5∙IQR (top whisker) decreases to below 25 cm, except for C30 and C44. The improvement can be due to the better observation geometry.

Fig. 4

Boxplots of 3D OBD errors for the E1 (red), E1I (purple), EA (green), EAI (blue), E2 (yellow), and E2I (cyan). The box is divided into three parts: the upper boundary (Q3 quantile), the middle groove (median) and the lower boundary (Q1 quantile). The length of the entire box is inter-quartile range (IQR). The upper and lower short lines of the box extension represent Q3 + 1.5∙IQR and Q1 − 1.5∙IQR, respectively

Full size image

To seek the reason for the degradation of orbit quality by using ISL for C30, Fig. 5 further illustrates the OBD errors in the along-track, cross-track and radial direction. For L-band solutions, i.e., EA, E1 and E2, they show almost similar results in cross-track and radial direction, while E2 has a better performance in the along-track direction. Furthermore, there is no significant Sun-elevation angle ($\beta$-angle, the angle between the Sun direction and the satellite orbital plane) dependent systematic error and the degradation of orbital accuracy during the eclipse periods. Once the ISL data are used, the OBDs are significantly reduced during DOY 147-340, 2020. However, before DOY 147, 2020, degenerated performance can be observed. To illustrate the reason, we re-determined the orbit by modeling the hardware delay as random parameters instead of the constants, and the estimated values are plotted in Fig. 6. The top two subplots in Fig. 6 present the estimated constant hardware delay for C20 and C30 during the study period, while the bottom two display the epoch-wise estimates for C20 and C30 during DOY 146 to 147, 2020. In general, the hardware delay of C20 is quite stable with an STD of about 0.13 m. However, unstable changes before DOY 147, 2020 and a jump up to 299.1 m can be observed for C30. Compared with Fig. 5, the stable hardware delay shows a strong correlation with the better OBD. This confirms that the stability of the Ka-band hardware delay has a significant impact on the performance of the ISL solutions. However, the cause of changes in hardware delay before DOY 147, 2020, requires further investigation.

Fig. 5

Time series of OBD in the along-track (red), cross-track (green) and radial (blue) direction for C30 of the six solutions, i.e., E1, E1I, EA, EAI, E2, and E2I. The shaded area represents the eclipse period

Full size image

Fig. 6

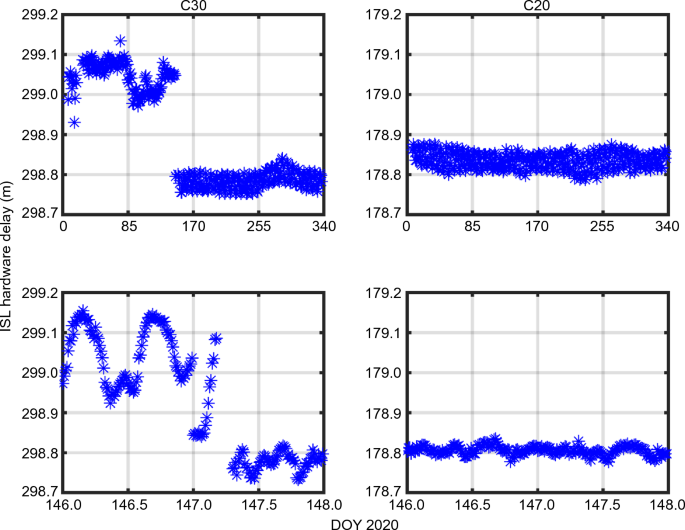

Variations of Ka-band hardware delays of C30 (left) and C20 (right) for E1I solution. The top two subplots present the estimated constant hardware delay for C20 and C30 during the study period, while the bottom two display the epoch-wise estimates for C20 and C30 during DOY 146 to 147, 2020

Full size image

SLR validation

SLR analysis is an effective and independent validation method for radial orbit. Every BDS-3 spacecraft is equipped with a laser-reflected array, and the International Laser Ranging Service (ILRS) has tracked all BDS-3 MEO satellites since 2023. However, during the study period, only C20 and C21 manufactured by CAST as well as C29 and C30 produced by SECM were tracked by ILRS. The LRA offsets with respect to the Center of Mass (CoM) in the body-fixed frame disclosed by CSNO (2019) are used in this study for validation. Table 4 presents the statistical results of SLR residuals for the six solutions. The residuals larger than 0.3 m were identified as outliers and removed. For C30, the results from the periods with unstable hardware delays (before DOY 147) are excluded here. As a result, for C20, C21, C29, and C30, there are a total of 3457, 3604, 2651, and 1087 normal points out of 3458, 3611, 2657, and 1089, respectively.

Table 4 Statistical results of SLR residuals for six solutions (unit: cm)

Full size table

In general, the four satellites exhibit different performances. However, the satellites from the same manufacture show similar performance. Specifically, CAST satellites have positive mean value up to around 6.5–7.4 cm, whereas it is about − 1.2 ~  − 3.3 cm for SECM satellites. For L-band solutions, E1 and EA demonstrate similar performance, while E2 has the best performance. Once the ISL data are used, the mean of SLR residuals is reduced from around 7.0 cm to 5.9 cm for C20 and C21, and slightly improved from − 2.3 cm to − 2.5 cm for C29 and C30. Meanwhile, the STD is reduced from around 3.6 cm to 2.5 cm for C20 and C21, and 4.1 cm to 3.5 cm for C29 and C30. It clearly confirms that ISL improves the orbit quality.

More importantly, SLR can be used for detecting systematic errors in mismodeling orbit perturbations. Figure 7 illustrates the SLR residuals with respect to the Sun elongation angle for the solutions E1 and E1I. As expected, SLR residuals clearly show a linear systematic error with respect to the ε-angles, and the fitting slopes are similar (around 0.074 cm/degree) with negative values for CAST and positive values for SECM satellites. The SLR residuals of the four MEO satellites are significantly larger in the range of |β|< 20°. Once the ISL data are added, the systematic $\text{ε}$-angle dependence of C20 and C21 almost disappeared, i.e., the slopes of the SLR residuals of C20 and C21 are decreased from − 0.073 cm/degree and − 0.078 cm/degree for the solution E1 to 0.006 cm/degree and − 0.010 cm/degree for the solution E1I, respectively. While a slight reduction is obtained for C29 and C30, a noticeable error can still be observed in the SLR residuals for SECM satellites. The reasons will be explained below.

Fig. 7

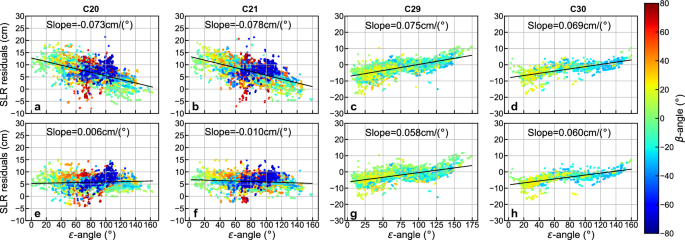

SLR residuals with respect to $\text{ε}$-angles for the BDS-3 CAST C20 and C21 as well as SECM C29 and C30 satellites of E1 (a–d) solution and E1I (e–h) solution. The results from the periods with unstable hardware delays (before DOY 147) are excluded for C30

Full size image

Additionally, the ECOM2 was reported to effectively reduce the Sun-elongation angle dependent systematic error (Li et al., 2020; Yan et al., 2019). Hence, Fig. 8 depicts the SLR residuals with respect to $\text{ε}$-angles for the four BDS-3 MEO satellites determined with ECOM2 model. It is clearly observed that the linear error is reduced compared to the solution E1 with slopes of − 0.013 cm/degree, − 0.017 cm/degree, 0.034 cm/degree and 0.014 cm/degree for C20, C21, C29 and C30, respectively. By using ISL data, the slopes for C20, C29 and C30 are further reduced to − 0.005 cm/degree, − 0.015 cm/degree and − 0.009 cm/degree, respectively, while almost no change is observed for C21.

Fig. 8

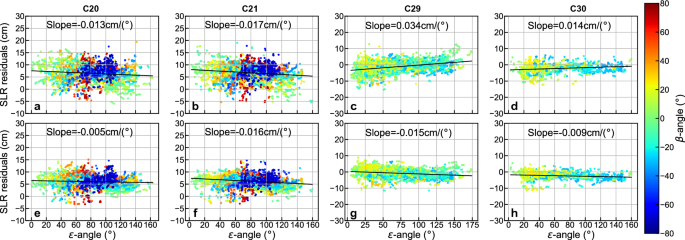

SLR residuals with respect to $\text{ε}$-angles for the BDS-3 CAST C20 and C21 as well as SECM C29 and C30 satellites of E2 (a–d) solution and E2I (e–h) solution. The results from periods with unstable hardware delays (before DOY 147) are excluded for C30

Full size image

ECOM parameters

Figure 9 illustrates the estimated ECOM1 parameters with respect to β-angles for C20 (CAST) and C29 (SECM) of the solutions E1 and E1I. As to the D₀ parameter of C20, its absolute value exhibits a positive correlation with the |β| beyond 25°, while it varies slightly for |β|< 25°. For C29, the absolute value of D₀ shows a negative correlation with |β| during the non-eclipse season, while it has a positive correlation during the eclipse season. After including the ISL data, the estimates of D₀ become smoother for both satellites, particularly in high |β| regimes. Regarding the Bc₁, the two satellites show distinctly different variations. The direction of Bc₁ variations for C20 is reversed when |β|> 60°, while it remains unchanged for C29, mainly due to the maximum |β| of 34°. Moreover, a noticeable bias can be observed for both. For C20, it is up to approximately 6.7 nm/s², whereas this deviation for C29 is relatively smaller, ranging from only about 0 to 4.6 nm/s². For the B₀ and Bs₁, the inclusion of ISL data makes the estimates more stable.

Fig. 9

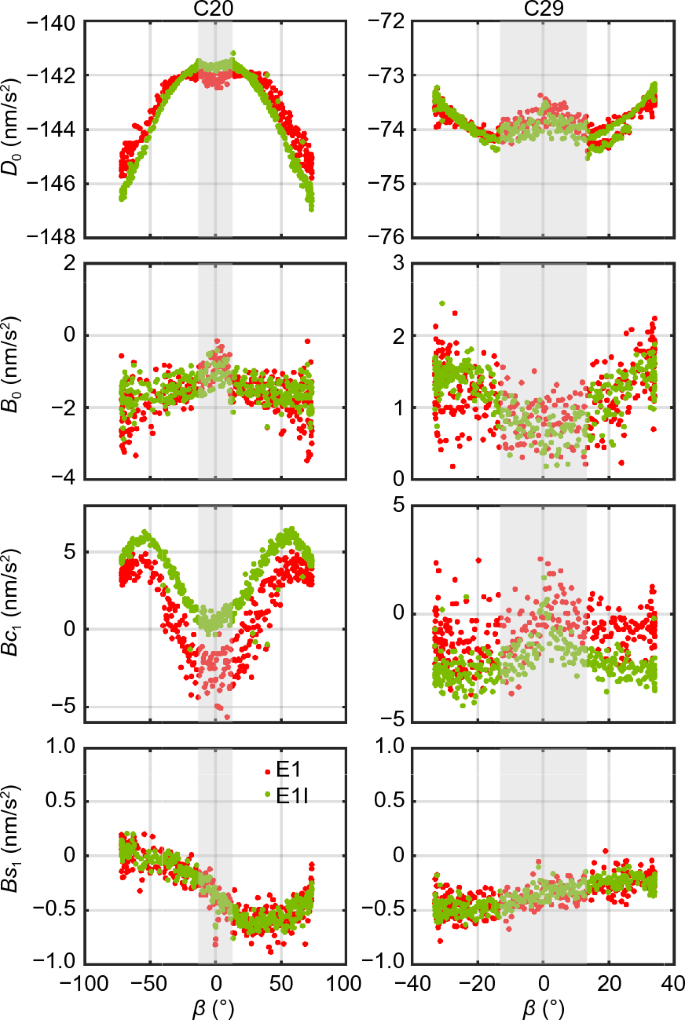

Estimated ECOM1 parameters, i.e., D₀, B₀, Bc₁, and Bs₁, with respect to β-angles for C20 (left) and C29 (right) of the solutions E1 (red) and E1I (green)

Full size image

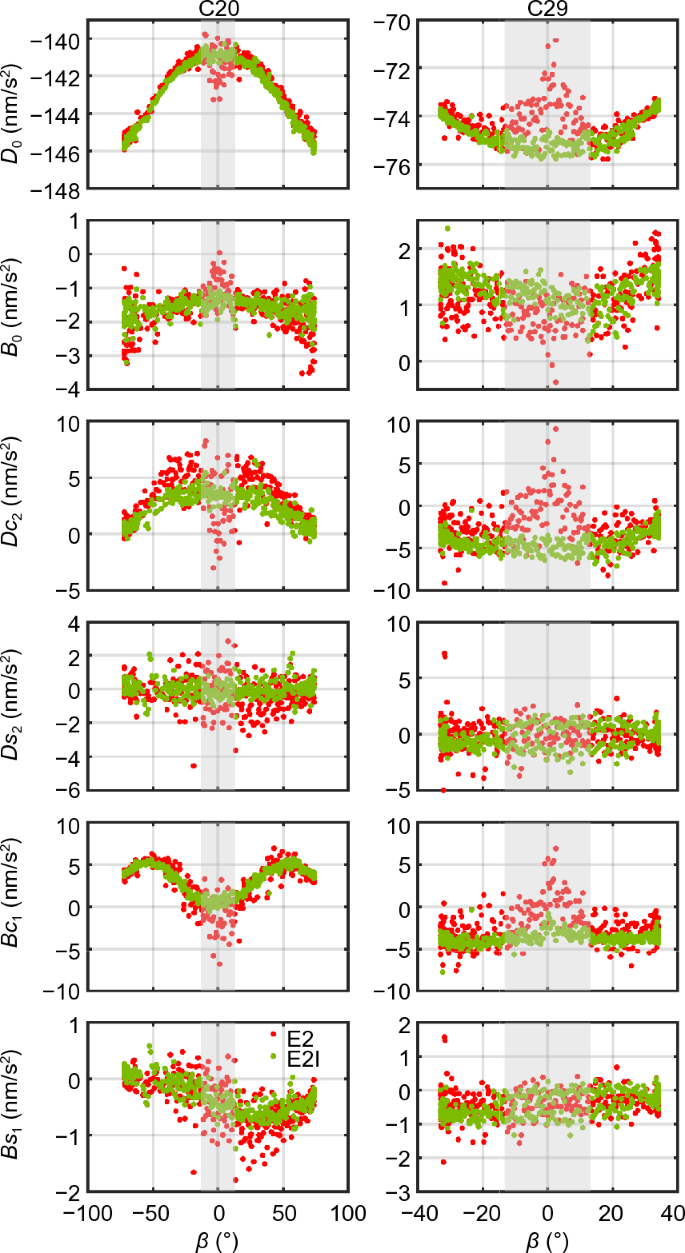

Figure 10 presents the estimated ECOM2 parameters of the solutions E2 and E2I for C20 and C29. The variations of D₀ are similar to those in Fig.9, however, the estimates of D₀ become different as two parameters are added, i.e., Dc₂ and Ds₂. With ISL data, the estimates become more precise and concentrated, particularly for C29 in the eclipse season. For the parameters in the B direction, the variations of the three parameters, i.e., B₀, Bc₁, and Bs₁, for C20 are entirely different from those of C29. The patterns as well as signs of those parameters show clear opposite variations for both satellites, and this is possibly caused by the different orientation of the stretched surfaces of satellite buses. Once the ISL data are used, the estimates of these parameters become more precise, as shown in Fig. 10. However, different from the ECOM1 solution, no noticeable bias can be observed in Bc₁ and Bs₁ estimates.

Fig. 10

Estimated ECOM2 parameters, i.e., D₀, B₀, Dc₂, Ds₂, Bc₁, and Bs₁, with respect to β-angles for C20 (left) and C29 (right) of the solution E2 (red) and E2I (green)

Full size image

Correlations

To explain the effect of ISL on parameter estimation, we investigated the correlation between the state and estimated ECOM1 parameters of the solution E1 and E1I for C20 at different $\beta$-angles. As shown in Fig. 11, ISL data markedly reduces the correlation between ECOM1 parameters and state parameters. This enables a more precise calculation of the satellite orbit and the perturbations. Moreover, for low to medium $\beta$-angles, the correlation between SRP parameters is reduced, resulting in a more accurate estimation of the parameters in the DYB direction. This has a significant impact on the estimates of Bc₁ parameter, resulting in the improvement of its accuracy and the noticeable bias. Similarly, Fig. 12 shows the correlation among the state and ECOM2 parameters of the solution E2 and E2I for C29. It is clearly observed that ISL results in a reduction of the correlation among most of the parameters at $\beta$ = 0°. This confirms that the inconsistency between the estimated parameters of E2I and E2 is due to more precise estimation of SRP parameters from ISL during the eclipse period. Furthermore, the strong correlation between Bc₁ and Dc₂ indicates that the inclusion of Dc₂ parameter leads to a more accurate estimation of the Bc₁ parameter, not generating the noticeable biases in the Bc₁ estimates for both E2I and E2 solutions.

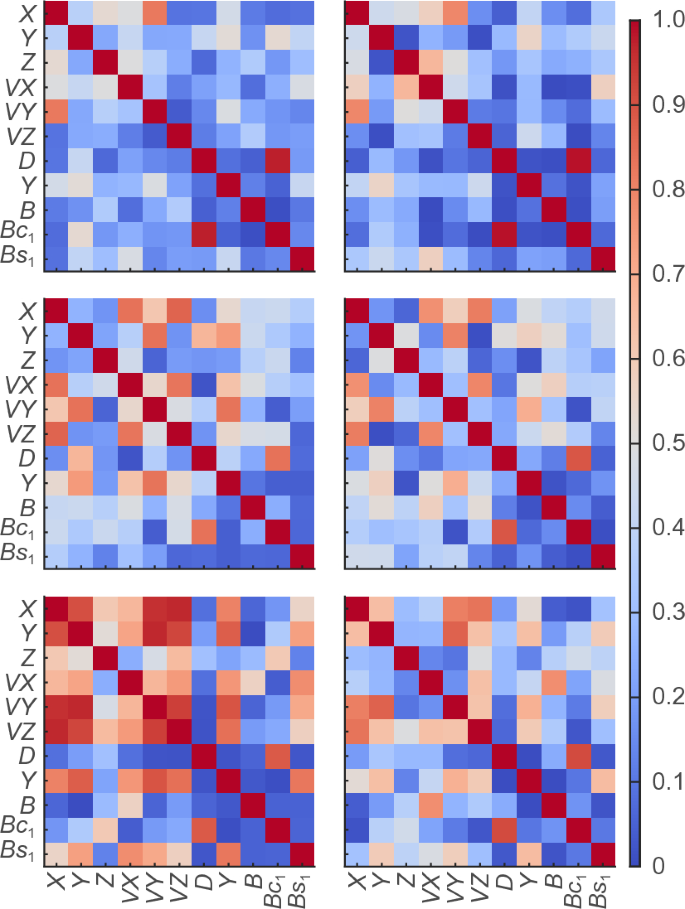

Fig. 11

Correlation between the satellite state and estimated SRP parameters based on the solution E1 (left) and E1I (right) for C20 at $\mid \beta \mid$ = 0° (top), $\mid \beta \mid$ = 40° (middle) and $\mid \beta \mid$ = 73° (bottom)

Full size image

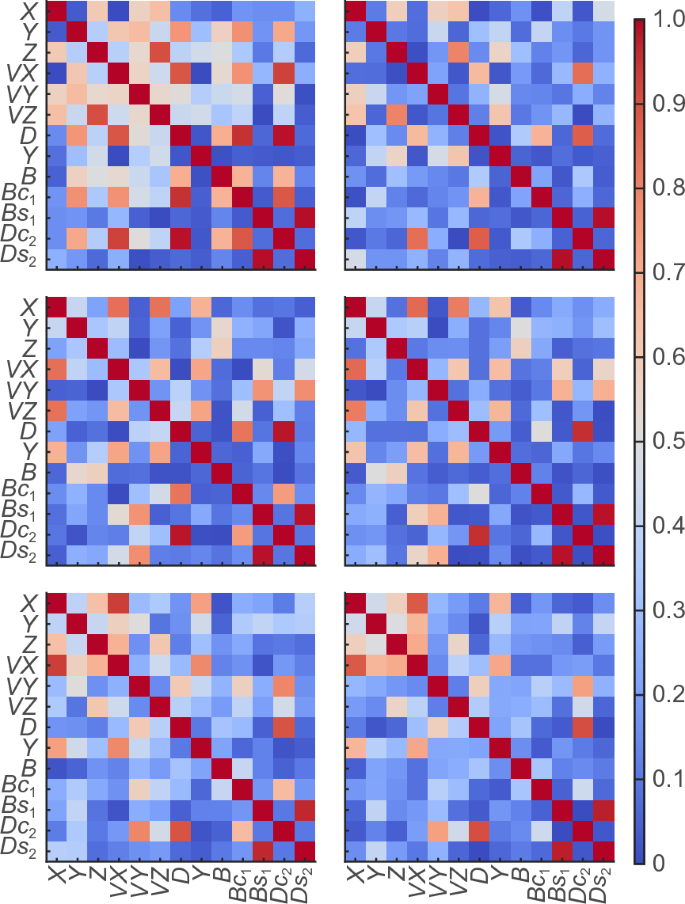

Fig. 12

Correlation between the satellite state and estimated SRP parameters based on the solution E2 (left) and E2I (right) for C29 at $\mid \beta \mid$ = 0° (top), $\mid \beta \mid$ = 15° (middle) and $\mid \beta \mid$ = 33° (bottom)

Full size image

Accelerations

To investigate the impacts of ISL on the estimated SRP perturbations, Fig. 13 presents the differences of SRP accelerations between E1 and E1I solutions for C20 in the along-track, cross-track, radial, and D, Y, B directions. In general, the differences in the along-track and cross-track direction are larger than those in the radial direction. Clear antisymmetric variations on $\mu$-angles or $\beta$-angles can be observed for the acceleration differences in the along-track and cross-track, respectively. However, the radial acceleration shows symmetrical variation on both $\beta$ and $\mu$-angles. Considering that SLR validation mainly indicates the radial accuracy, we focus on the radial acceleration in this study.

Fig. 13

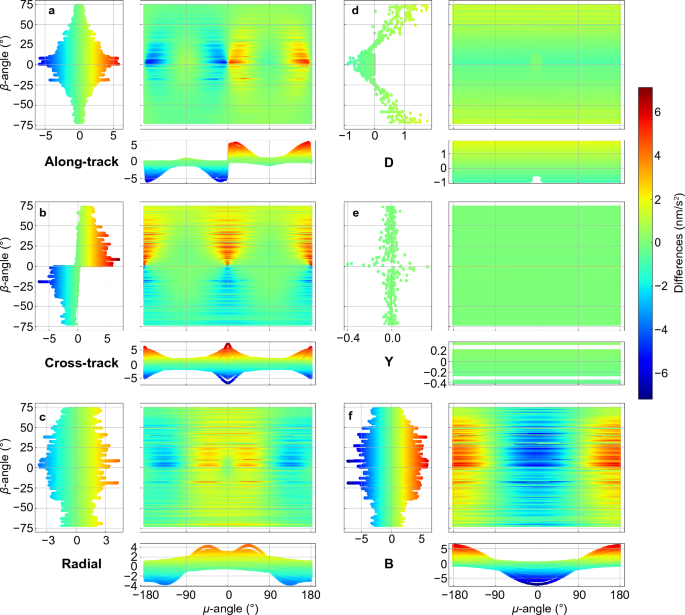

SRP acceleration differences between the solution E1 and E1I for C20 in the along-track (a), cross-track (b), radial (c) and D (d), Y (e), B (f) direction

Full size image

In addition, it can be clearly observed from Fig. 13 that the effect of ISL on SRP is mainly concentrated in B direction. The differences in the D direction are only up to 1.5 nm/s² in high $\beta$ regimes, while those in the B direction can reach 6 nm/s² at midnight or noon points. This is consistent with the estimates of ECOM1 shown in Fig. 9. An important finding is that the acceleration differences in the B direction present an almost negative pattern compared to the radial acceleration differences. This is because the angle between B and radial direction is always greater than 90°. Meanwhile, the same variation trend confirms that the radial orbit differences mainly come from the perturbations in B direction.

On the other hand, the ECOM2 model can effectively reduce the systematic Sun-elongation angle dependent linear trend in the SLR residuals. Hence, we investigated the differences of SRP perturbations of the solutions E1 and E2 within the DYB frame, as shown in Fig. 14. As expected, the large differences along the D direction are observed, as two additional periodic parameters are estimated in D. Moreover, noticeable differences in the B direction can also be observed, and the variation in the B direction is very similar to that shown in Fig. 13(f). From the above correlation analysis, it can be observed that there is a significant correlation between Bc₁ and Dc₂, as well as between Bs₁ and Ds₂. The inclusion of Dc₂ and Ds₂ plays a key role in absorbing the effects of Bc₁ and Bs₁, leading to more accurate estimation. This, in turn, contributes to the differences in acceleration of the B direction. For CAST satellites, ISL compensates for the deficiencies of the ECOM1 model by directly enhancing the accuracy of the SRP estimation in the B direction.

Fig. 14

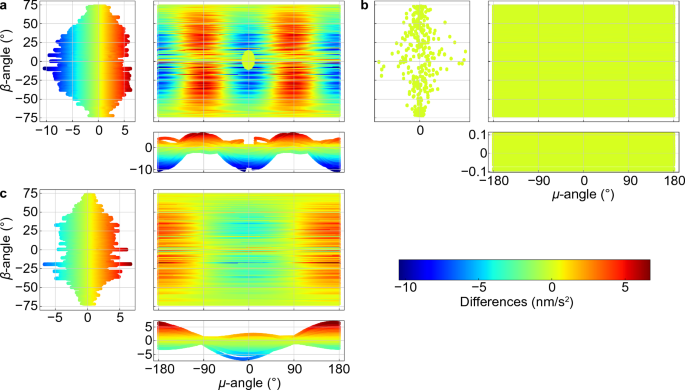

SRP acceleration differences between the solution E1 and E2 for C20 in the D (a), Y (b), B (c) direction

Full size image

Considering the radial orbit are highly correlated with the clock, the linear clock-fit (LCF) residuals can be used to demonstrate the radial orbit errors. In Fig. 15, the differences of the LCF residuals between the solutions E1 and E1I w.r.t. β-angles and μ-angles are shown for the selected representative satellites, i.e., C20, C21, C29 and C30. As reported by the TARC of CSNO, the Rubidium Atomic Frequency Standard (RAFS) clocks are used as the primary onboard clock for C20 and C21, whereas C29 and C30 use Passive Hydrogen Maser (PHM) clocks. It is observed that the differences of LCF residuals are relatively large in the range |μ|< 90° and around μ =  ± 180°, especially for the CAST satellites. This aligns with the acceleration differences in the B direction shown in Fig. 13, further confirming that ISL data can improve B-direction estimates to mitigate systematic errors.

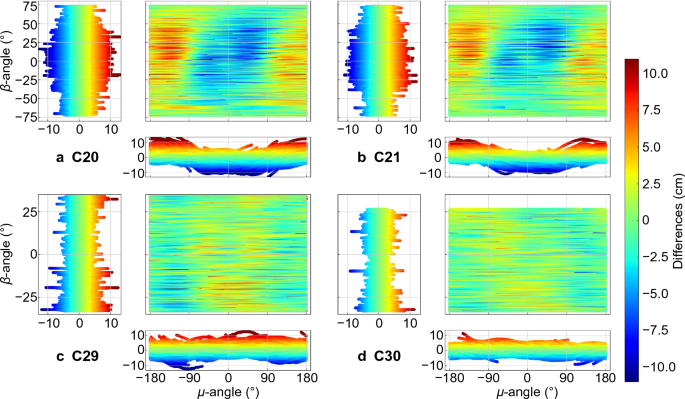

Fig. 15

LCF residuals differences between the solution E1 and E1I w.r.t. $\beta$-angles and $\mu$-angles for CAST MEO satellites C20 (a), C21 (b) and SECM MEO satellites C29 (c), C30 (d). The results from periods with unstable hardware delays (before DOY 147) are excluded for C30

Full size image

According to the theory of the analytical SRP model (Milani et al., 1987; Montenbruck et al., 2015; Rodriguez-Solano et al., 2012), SRP results from SPs and satellite surfaces illuminated by the Sun. Only the + X, $\pm$ Z surfaces and SPs are illuminated in the nominal yaw steering mode for BDS-3 MEO satellites. The perturbation generated by the SPs primarily contributes to the D direction, while the SRP in the B direction mainly originates from the satellite bus. As shown in Fig. 16, the projection of SRP generated by the CAST satellite bus in the D direction is approximately 10 to 25% of the SPs, whereas that of SECM ranges from 13 to 45%. The variation in the projection of SRP generated by the CAST satellite bus in the B direction is larger than that of the SECM, as also illustrated in Fig. 9. These explain why improving the B direction estimation of the ECOM1 model with ISL causes the linear $\text{ε}$-angle dependence to almost disappear for the CAST satellite, whereas it is only reduced for the SECM satellite.

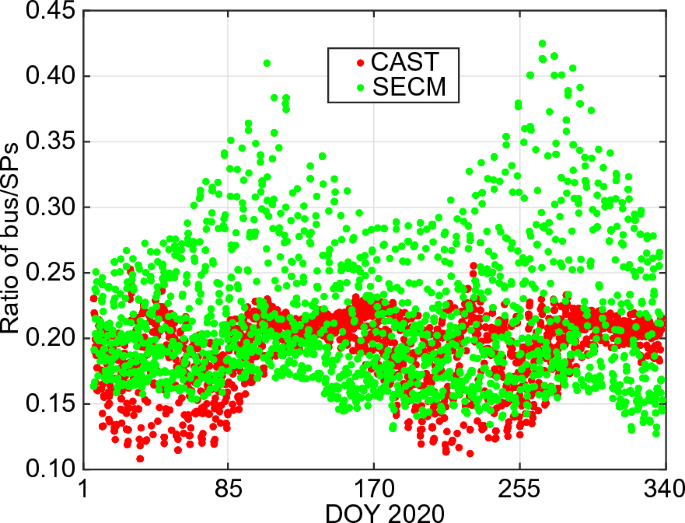

Fig. 16

Ratio of SRP perturbances generated by the satellite bus and SPs in the D direction for C20 (red) and C29 (green)

Full size image

Discussion

There are a few issues to be further addressed. For previous analysis, the weight ratio was set as 10,000:100:1 for the phase, ISL, and code measurements. However, we also observed that the different weighting ratio settings for the phase, code, and ISL data can affect the results. For instance, when the weight ratio of the ISL is set to 10 or 1000 instead of 100, the sun-elongation angle dependent systematic errors are not eliminated for all the four satellites of these two solutions, as shown in Fig. 17. For the two SECM satellites, i.e., C29 and C30, the slope of linear variation is increased from around 0.058 cm/degree to 0.094 cm/degree. While the noticeable decrease of linear slope can be observed compared to the solution E1 for both CAST satellites, i.e., C20 and C21. The sign of the slope even changes. This demonstrates the ISL has more pronounced impacts on the orbit determined based on ECOM1 for CAST satellites than that of SECM satellites. The reason for this discrepancy may be because the SECM satellite body structure contributes strongly to the acceleration in the D direction and is less susceptible to receiving changes in the B direction. This also clearly indicates the significant impact of the stochastic model on the orbit solution. Therefore, it is essential to use the appropriate stochastic model. According to the analysis by Yang et al. (2020) based on the 1-h post-fit residuals of orbit-free observables, a setting of 100 for the ISL can correctly reflect the precision of the ISL measurements.

Fig. 17

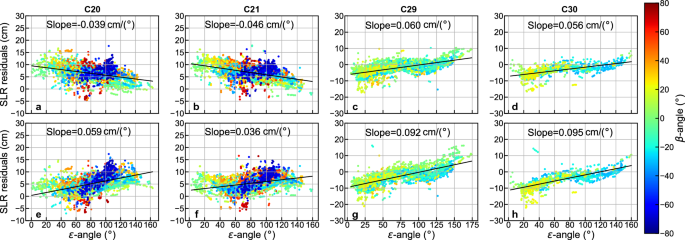

SLR residuals with respect to ε-angles for the ISL measurements weight ratio of 10 (a–d) or 1000 (e–h)

Full size image

Furthermore, as to the potential effects from space weather conditions, the ionospheric delay and tropospheric delay do not have influences on the ISL measurements between the satellites used in this study for data processing. Regarding the effects of other space weather, such as solar wind, geomagnetic storm, etc., on the orbit are absorbed and reflected by the SRP model. However, the deficiencies in the ECOM1 for BDS-3 are not mainly from the mismodelling of the space weather’ effect, as shown by the results, and ISL data or ECOM2 can be used to reduce the deficiencies of ECOM1. For the time-dependent variations in the SLR residuals of the orbit determined with improved SRP models, these are possibly related to the space weather. From the perspective of orbit accuracy, it appears that ECOM2 demonstrates good performance in POD for BDS-3 MEO satellites without the a priori model. Hence, the ECOM2 model is recommended for BDS-3 MEO POD if no a prior SRP model is used.

Conclusion

The introduction of ISL data for GNSS satellites offers a new perspective for studying the characteristics of satellites orbits. In this study, we investigated the impact of the ECOM1 and ECOM2 models on the BDS-3 MEO POD. We explored the significant effect of ISL data on the orbital characteristics of the BDS-3 MEO satellites and provided a physical explanation for this phenomenon.

The internal quality of solutions based on L-band data (E1, EA and E2) is at a similar level. By using the ISL observations, the median of 3D OBD is decreased by approximately 5–30 cm compared to the L-band solutions. However, the solutions E1I and EAI are characterized with significantly lower internal stability to the C30 than the solutions E1 and EA. We have confirmed that this issue is attributed to the unstable Ka-band hardware delay of the C30. This finding emphasizes the substantial impact of Ka-band hardware delay stability on the performance of joint ISL solutions. Additionally, it is worth noting that the unstable hardware delay for C30 occurs before DOY 147, 2020, when the BDS-3 constellation was under the in-orbit validation phase. Once the system was commissioned on July 31, 2020, it remains stable as shown by the results.

The external quality analysis shows that SLR residuals of the CAST satellites are characterized by a positive bias whereas the SECM satellites are characterized by a negative bias. This is consistent with the results presented by the GFZ analysis center with the ECOM1 model (Steigenberger et al., 2023). ISL clearly makes the CAST satellites orbit results more reliable, i.e., the STD of the SLR residuals is about 2.5 cm and the RMS is reduced by 10–23% compared to L-band solutions. This result is approximately 29% better than the POD solutions of Duan et al. (2022). The benefits of the ISL data are visible when considering the SLR residuals in relation to the $\text{ε}$-angles. For the solution E1I, the systematic $\text{ε}$-angle dependence of C20 and C21 almost disappeared and is decreased for C29 and C30. From our analysis of the SRP accelerations in both the L-band and ISL solutions, we observe that the acceleration differences in the B direction exhibit a negative pattern compared to those in the radial direction. Additionally, the variation introduced in the B direction by ECOM2 is similar to that introduced by the ISL. This is due to the strong correlation between Bc₁ and Dc₂, as well as between Bs₁ and Ds₂. The ECOM2 model increases the accuracy of the estimates in the B direction by adding two periodic parameters in the D direction. Furthermore, the ISL reduces the correlation between state parameters and SRP parameters as well as among SRP parameters, leading to a more accurate estimation of both orbit and SRP perturbations. Nonetheless, for the SECM satellite, characterized by small SPs and larger main illuminated surfaces, the ISL can only reduce the linear systematic error. This is because the satellite body structure contributes significantly to the acceleration in the D direction, and this contribution cannot be fully absorbed by the parameters in the B direction. Generally, the deficiency of the SRP model can be compensated by using better observation geometry from ISL data.

This study provides a new perspective to view the SRP perturbation. Considering that future GNSS constellations will consist of LEO satellites and optical ISLs will be used, more accurate dynamic models and contribution from better geometry can be expected.

Data availability

The estimated accelerations and orbits are available upon request. The ISL observation data are available from the corresponding author upon reasonable request and with the permission of the China Satellite Navigation Office (CSNO).
