Integrated Positioning and Communication via LEO Satellites: Opportunities and Challenges

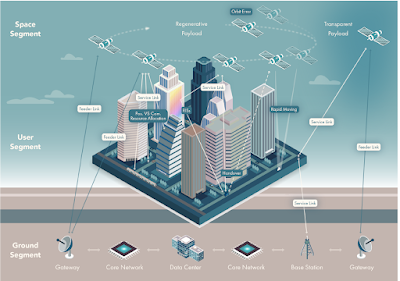

Figure 1 in the paper is a comprehensive illustration of the LEO satellite system architecture, divided into three main segments: Space, Ground, and User. The figure serves as a foundational reference for understanding the complete LEO satellite ecosystem and how positioning and communication services are integrated across the system's various components.

LEO Satellites Set to Revolutionize Positioning and Communication Services

Researchers have highlighted how the integration of positioning and communication capabilities in Low Earth Orbit (LEO) satellites could transform global connectivity and navigation services. In a new study published on arXiv, scientists from King Abdullah University of Science and Technology detail the significant advantages of combining these technologies.

Unlike traditional satellite systems, LEO satellites orbit at much lower altitudes (160-2,000 km), providing stronger signals and reduced latency. Major constellations like Starlink and OneWeb are already deploying thousands of these satellites, creating extensive networks for global coverage.

The research demonstrates that position-aware communication systems could enable more efficient beamforming and signal routing, while advanced communication infrastructure enhances positioning accuracy. In simulations, position-based beamforming achieved comparable performance with 100 times less precise measurements compared to traditional methods.

However, the researchers identify several challenges that need addressing, including managing strong Doppler shifts, frequent satellite handovers, and resource allocation across thousands of simultaneous users. Privacy and security concerns also arise from the need to share location data across the network.

The integration comes at a crucial time as both positioning and communication demands grow with applications like self-driving vehicles and the Internet of Everything. Reduced manufacturing and launch costs, particularly through reusable rockets, are making large LEO satellite deployments increasingly feasible.

Recent technical advancements, including the development of regenerative payloads that can process signals and inter-satellite links enabling collaborative operations, are paving the way for this integrated approach to become reality.

The research team, led by Jie Ma and including Pinjun Zheng, Xing Liu, Yuchen Zhang, and Tareq Y. Al-Naffouri from KAUST's Electrical and Computer Engineering Program, builds on previous studies examining LEO satellite capabilities. Their work extends earlier research on satellite-based positioning, navigation, and timing (PNT) systems, while incorporating recent developments in 5G and 6G communication technologies.

This latest study advances the field by providing comprehensive analysis of how positioning and communication functions can enhance each other, supported by detailed simulations and mathematical models. The researchers acknowledge the contributions of KAUST's scientific illustration team, notably Ana Runte, who created visual representations of the complex satellite systems described in the paper.

The paper examines the integration of positioning and communication capabilities in Low Earth Orbit (LEO) satellites, highlighting potential synergies and challenges.

Key points:

1. LEO Features:
- Orbits 160-2,000km altitude
- Lower path loss and delay vs traditional satellites
- Two architectures: ground-based (signal relay) and space-based (signal processing)

2. Integration Benefits:

For Communication:

• - Position data enables efficient beamforming
• - Faster timing advance updates
• - Improved Doppler compensation
• - Better routing optimization

For Positioning:

• - Advanced antenna infrastructure improves accuracy
• - Network coordination enhances performance
• - Two-way communication enables better service

3. Case Studies:

• - Position-based beamforming outperforms traditional methods when location accuracy >10km
• - Multi-antenna arrays with cooperative satellites significantly improve positioning accuracy

4. Challenges:

• - Managing Doppler effects
• - Time/frequency division choices
• - Satellite orbit errors
• - Frequent handovers
• - Multi-user resource allocation
• - Privacy/security concerns

The research demonstrates significant potential benefits from integrating these functions while identifying key technical hurdles requiring further research.

Figures and Tables

Figures and Tables in the paper:

FIGURES:

1. Fig. 1: Structure of LEO satellite systems
- Illustrates division into space, user, and ground segments
- Shows different payload types and system components
- Created by scientific illustrator Ana Runte at KAUST

2. Fig. 2: Spectral efficiency comparison
- Compares two beamforming methods:
  * Using reconstructed LoS channel based on UE location
  * Using outdated channel estimate
- Shows relationship between efficiency vs channel estimation error and location uncertainty

3. Fig. 3: Positioning CRB (Cramér-Rao Bound) comparison
- Compares three setups:
  * Single-antenna cooperative satellites
  * Multi-antenna cooperative satellites
  * Multi-antenna non-cooperative satellites
- Shows how positioning accuracy changes with number of antenna elements
- Demonstrates benefits of cooperation and multiple antennas

4. Fig. 4: Frequency vs Time Division Duplexing
- Illustrates different duplexing schemes for positioning and communication
- Shows resource allocation across multiple users

5. Fig. 5: Positioning RMSE vs Channel Accuracy
- Shows relationship between positioning error and channel delay accuracy
- Demonstrates impact of satellite position mismatch
- Compares actual RMSE with theoretical bounds

TABLES:

1. Table I: Large-scale Path Loss Components
- Comprehensive list of path loss factors in satellite-terrestrial channels
- Details six components:
  * Free space path loss
  * Shadow fading loss
  * Clutter loss
  * Atmospheric absorption
  * Ionospheric/tropospheric scintillation
  * Building penetration loss
- Describes key features and characteristics of each component

The figures and table work together to illustrate both the theoretical framework and practical implementation challenges of integrated positioning and communication systems in LEO satellites.

Integrated Positioning and Communication via LEO Satellites: Opportunities and Challenges

Electrical Engineering and Systems Science > Signal Processing

[Submitted on 21 Nov 2024]

Jie Ma, Pinjun Zheng, Xing Liu, Yuchen Zhang, Tareq Y. Al-Naffouri

Low Earth orbit (LEO) satellites, as a prominent technology in the 6G non-terrestrial network, offer both positioning and communication capabilities. While these two applications have each been extensively studied and have achieved substantial progress in recent years, the potential synergistic benefits of integrating them remain an underexplored yet promising avenue. This article comprehensively analyzes the integrated positioning and communication (IPAC) systems on LEO satellites. By leveraging the distinct characteristics of LEO satellites, we examine how communication systems can enhance positioning accuracy and, conversely, how positioning information can be exploited to improve communication efficiency. In particular, we present two case studies to illustrate the potential of such integration. Finally, several key open research challenges in the LEO-based IPAC systems are discussed.

Subjects:	Signal Processing (eess.SP)
Cite as:	arXiv:2411.14360 [eess.SP]
	(or arXiv:2411.14360v1 [eess.SP] for this version)
	https://doi.org/10.48550/arXiv.2411.14360
